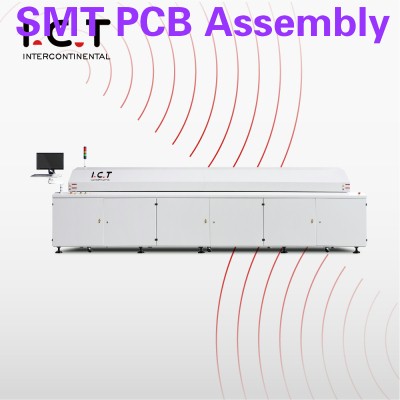

Lead Free Reflow Soldering For PCB Unit
❙ Introduce of Reflow Oven
1. Control System
Computer or Instrument control, make sure machine working steadily.
2. Hot Air Heating System
Both top and bottom zones hot air heating,good heater compensatory,High thermal efficiency,energy saving,speedy heating,suitable for soldering components like BGA,CSP etc.Special forced hot air circulation structure makes PCB and components heat evenly, Temperature Accuracy ± 1.5 °C, room temperature settling time less than 20 minutes.
3. Cooling System
Independent cooling area ensures the low temperature when PCB comes out.
4. Transmission system
Use imported motors, speed adjuster, smoothly running, adjustable speed at 0-2000mm/min.
❙ Specification of Reflow Oven
|Machine Weight||Approx. 2200KG||Approx. 2400KG|
|Number Of Heating Zones||Up8/Bottom8||Up10/Bottom10|
|Length Of Heating Zones||3030mm||3730mm|
|Number of Cooling Zones||2||3|
|Transmission Agent||Chain + Mesh||Chain + Mesh|
|Max.Width Of PCB||460mm||460mm|
|Power For Warm Up||45kw||55kw|
❙ I.C.T Customer Factory
▽ Russia customer - Full SMT production line
▽ Poland customer (Battery Chargers and Adapters) - Full SMT production line
▽ Customized reflow soldering oven for HUAWEI (5G products) Shenzhen, Qingdao, Dongguan, Wuhan factory.
❙ Company Profile
I.C.T Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ I.C.T SMT Machine Exhibition
❙ I.C.T Reflow Oven Certificate
❙ I.C.T Global Service
❙ Customers' Feedback
If you could not find any similar items you want, you may send some photos to us. because our catalog and website haven't included all of our products.
❙ SMT Reflow Oven Video
